Projecta IDC25 DCDC Charger + Wiring Kit for Boot/Tub/Trailer Installation

Name: Projecta IDC25 DCDC Charger + Wiring Kit for Boot/Tub/Trailer Installation
Availability: InStock

$459⁹⁹

Tax included Shipping calculated at checkout.

Delivery and Shipping

Shipping is a flat rate of $11.95, *however occasionally Heavy or Bulky items, Dangerous Goods or deliveries to regional/remote areas may incur an extra freight charge. Our Customer Service team will be in contact if this does occur.
Orders to major capital cities except WA generally arrive within 3 to 5 business days, WA delivery times are normally 5 to 10 business days.
For further information please refer our Shipping & Delivery page.

365-Day Warranty

AutoMegaStore offers a 365-day warranty - 365 days from date of purchase. We will either credit, replace, or refund your item. The warranty covers all manufacturing faults and defects.
For further information please refer our Warranty page.

Item Returns

At AutoMegaStore, we want you to be 100% happy with your purchase. If, for any reason, you are not satisfied, you may return the product to us within 30 days of the date of purchase.
Email us with your name, order number, and images of the intended returned product, and our Customer
Care team will arrange authorisation for the return.
For further information please refer our Refunds & Returns page.

The IDC25 is a truly sophisticated dual battery management system ideal for 4WD and camper trailer applications; however, it can be quite tricky to hook up “ and thats why weve created the perfect wiring kit

Designed for boot/tub/trailer mounting of battery (engine kit also available: AMS40056)
Contains Projecta specified wire gauge & fuses “ also suits most other DCDC chargers
Anderson plugs included for easy connect/disconnect

*See description for full kit contents*

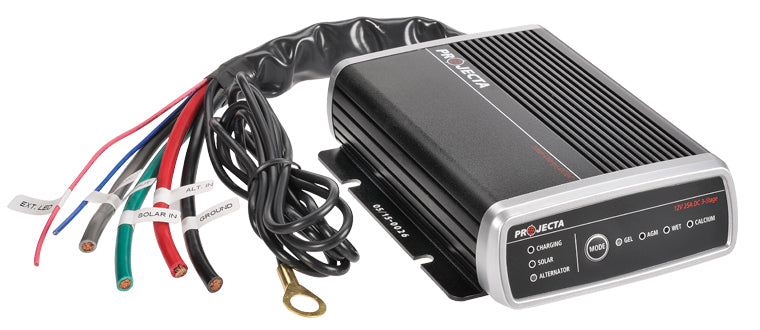

Projecta IDC25 25A 3 Stage DC/SOLAR Battery Charger V5

NEW Version 5 Model - Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries

Dual Charging Modes / Dual Input Operation
Simultaneous dual battery charging from both solar and alternator inputs

Engine Bay Installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel

Caravan installation
Combines your solar and vehicles power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance

4WD installation
A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternato

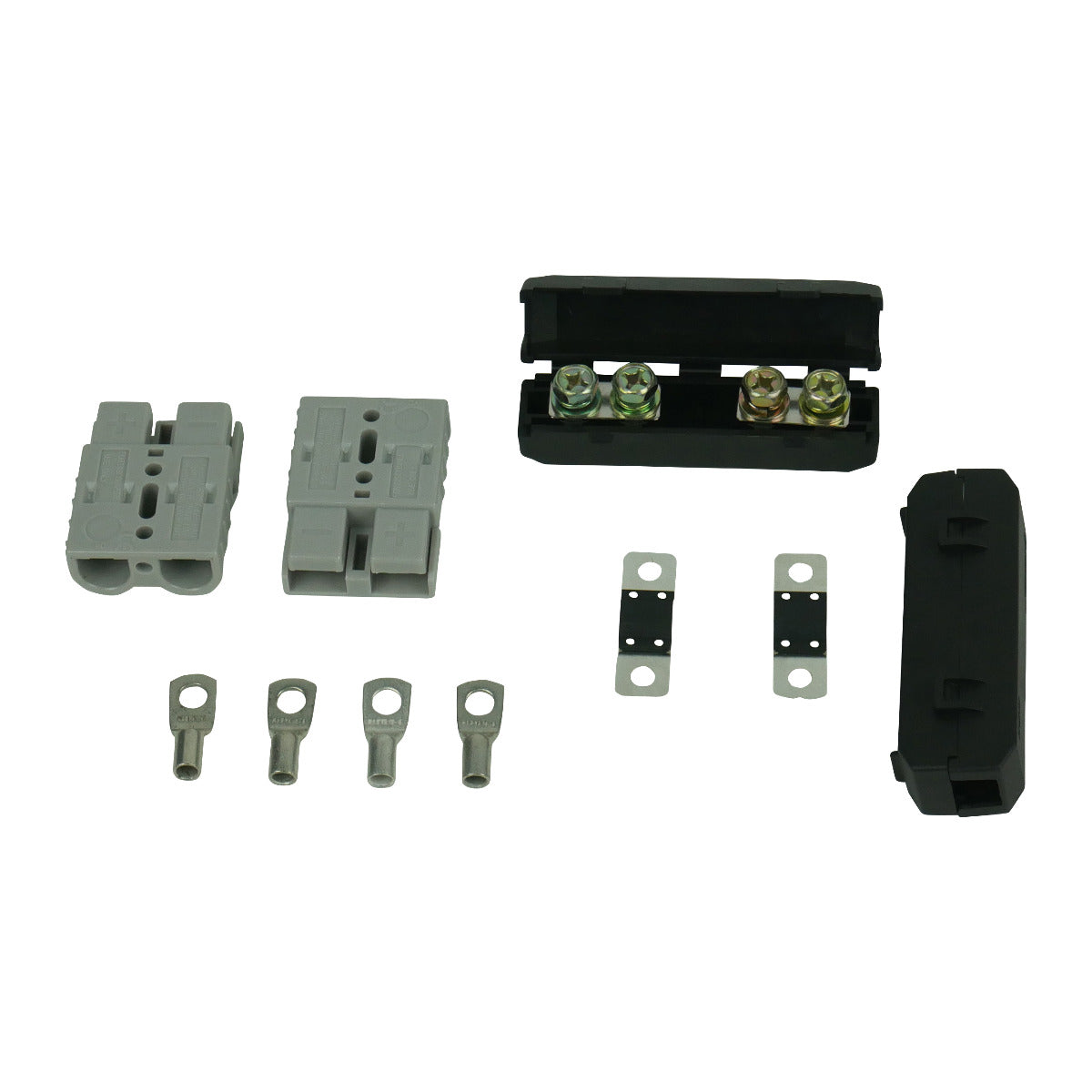

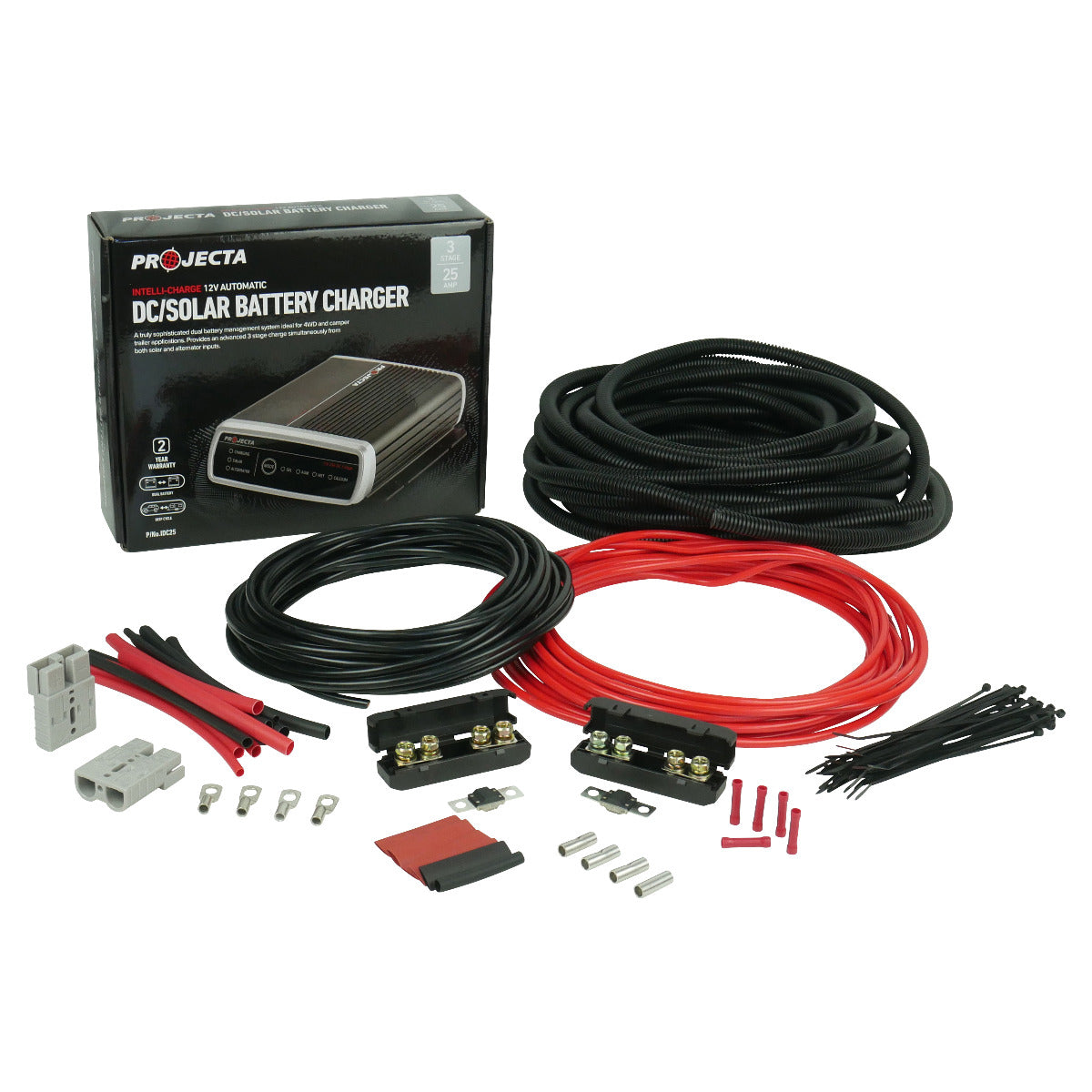

Full Wiring Kit Contents:

Projects 50AMP ANS Fuse x 2

Projecta ANS Fuse Holder x 2

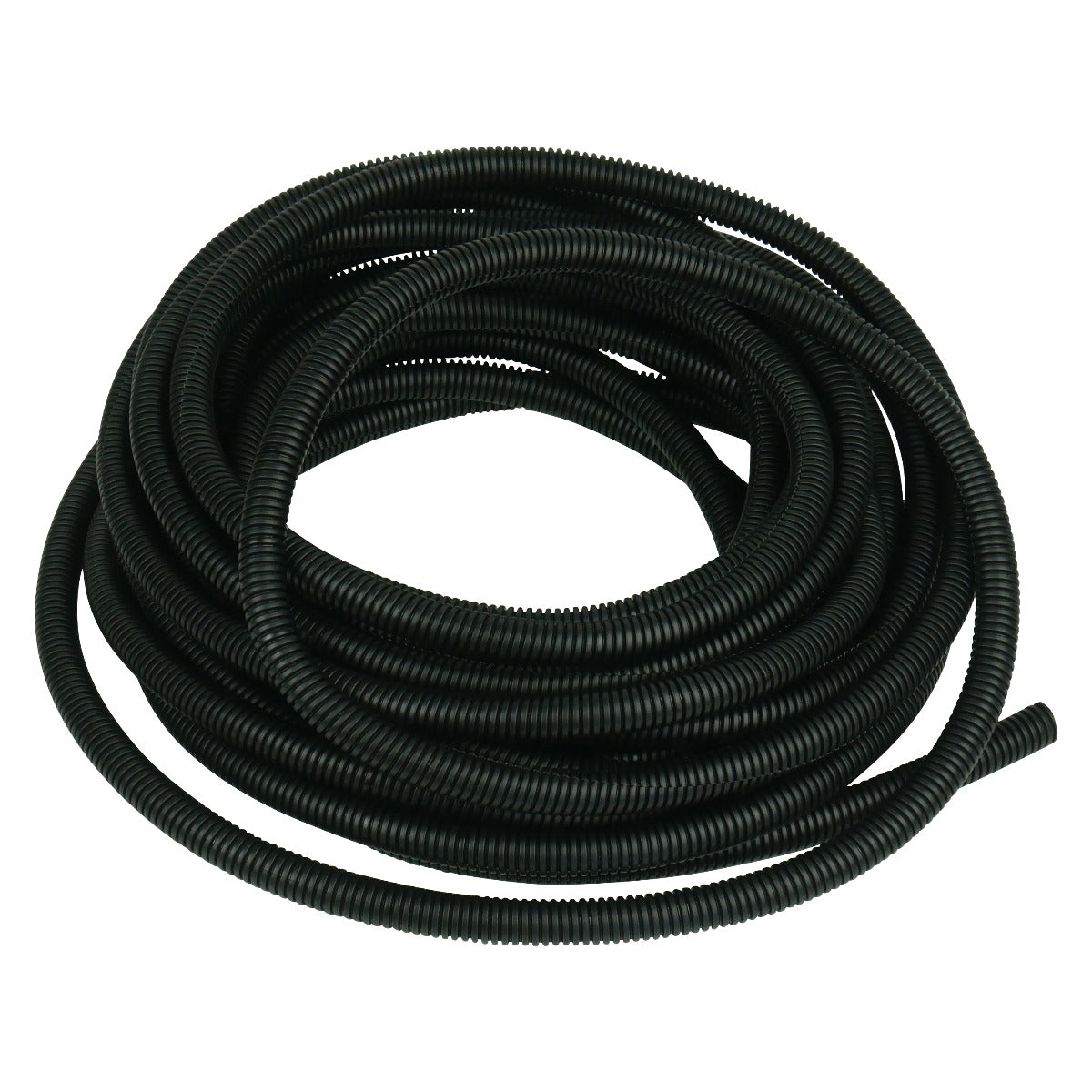

Narva Corrugated Split Sleeve Tubing: 10mm x 10M

Grey Anderson Plugs x 2

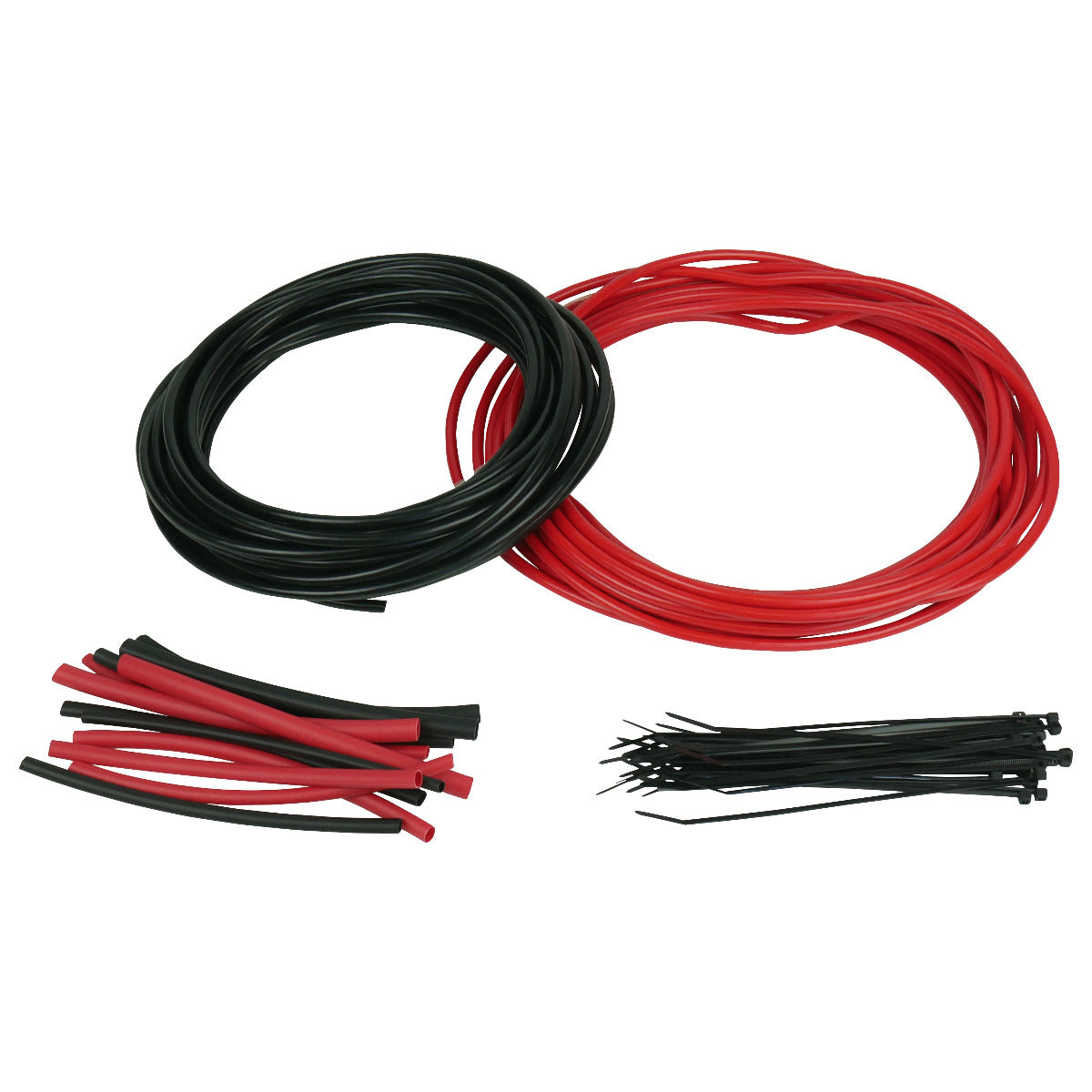

8B&S (8AWG) Battery Cable Black: 5M

8B&S (8AWG) Battery Cable Red x 10M

Narva Cable Lugs 8B&S with 6mm Stud Hole x 4

Heat Shrink Tube Assortment Red & Black Dual-Wall 12 Piece / 1.8M

Cable Ties 200 x 3.6mm 25 Pack

*Ignition/External LED cable not included for IDC25 wiring as this is optional/alternator dependant*

Correct Fuses

We have included the Projecta recommended 50AMP ANS fuse to use with the wiring kit. BE CAUTIOUS of other sellers that supply cheaper and incorrect fuse types, this will potentially cause damage to the DCDC charger and batteries.

Protect your wires!

Many other wiring kits do not include corrugated split sleeve tubing for your wires. Professionals will always protect wires with corrugated split sleeve tubing to prevent damage from impact and heat.

Easy Connect-Disconnect

We have included Anderson plugs with our wiring kit; this enables the charger to be easily removed. This can come in handy when swapping out batteries, solar panels or making any repairs.

If you wish to add any more Anderson plugs, we have them available in grey: AMS30357 and red: AMS40015

I have a different brand of DCDC charger, will this kit work for me?

Most likely yes, this kit should work great with a range of DCDC chargers on the market. Just be sure to check your installation guide and check that the 50AMP fuses and the 8B&S (8AWG) is suitable for your specific application.

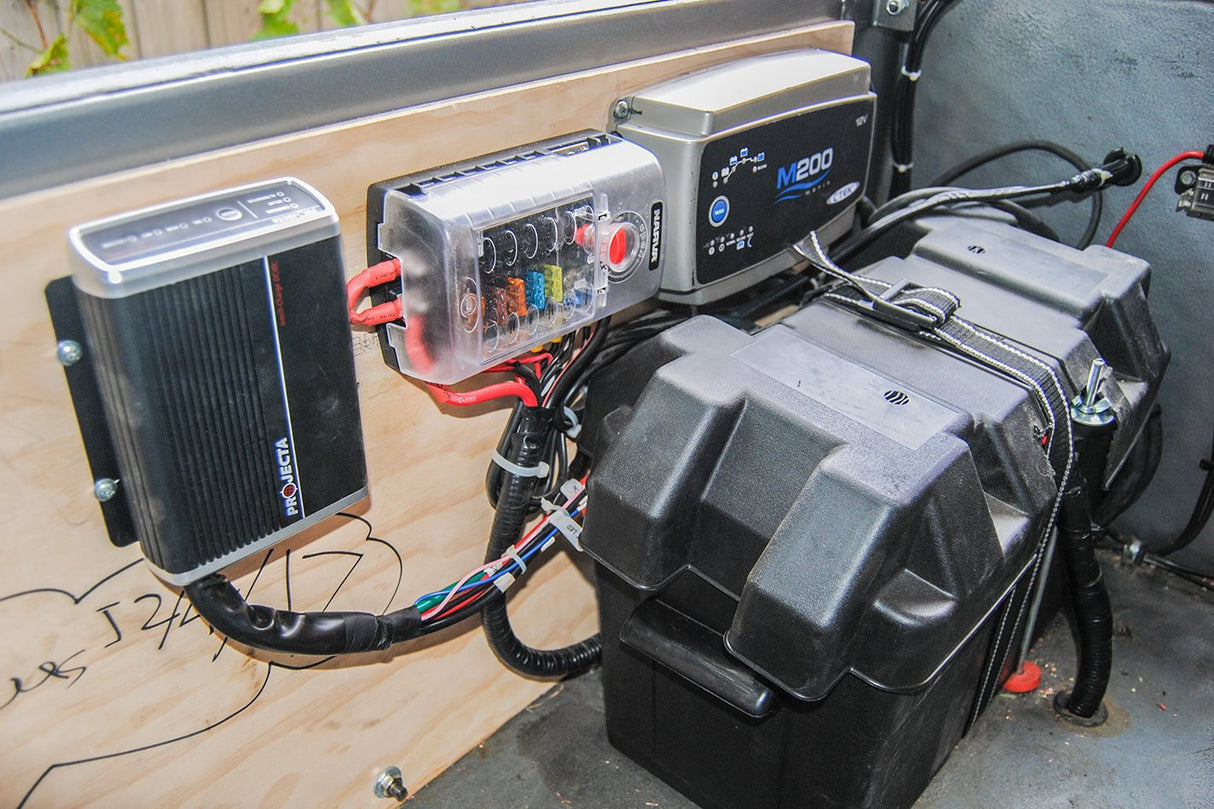

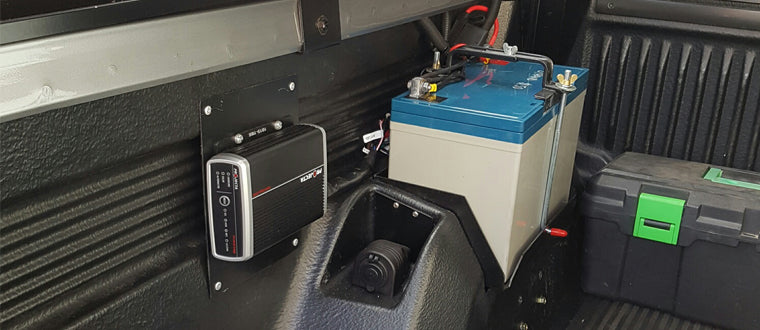

Mounting the IDC25

The rugged design of the IDC25 affords it to be mounted wherever best suits the application. By using advanced potting technology, the unit is resistant to shock, vibration, dust and water allows which allows for under-bonnet or in-vehicle installation.

Clever 'side extrusions' incorporated within the enclosure allow the unit to be mounted to flat surfaces as close to the auxiliary battery as possible. It is advisable however to keep the charger as far away from exhausts, turbos or any other high temperate components to ensure improve performance.

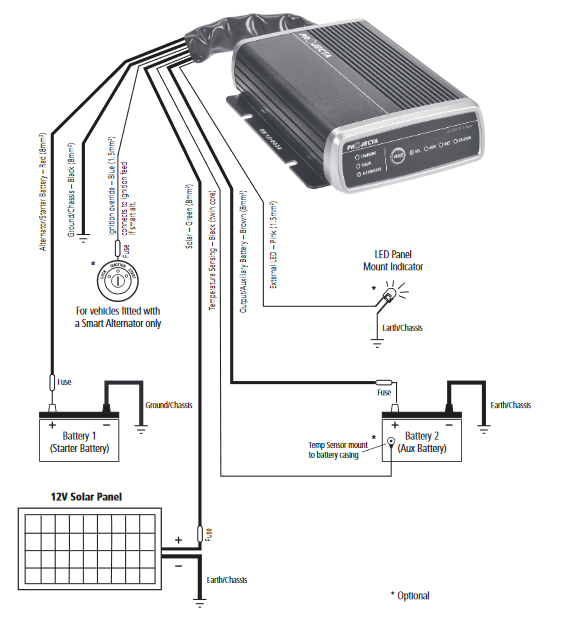

Wiring the IDC25

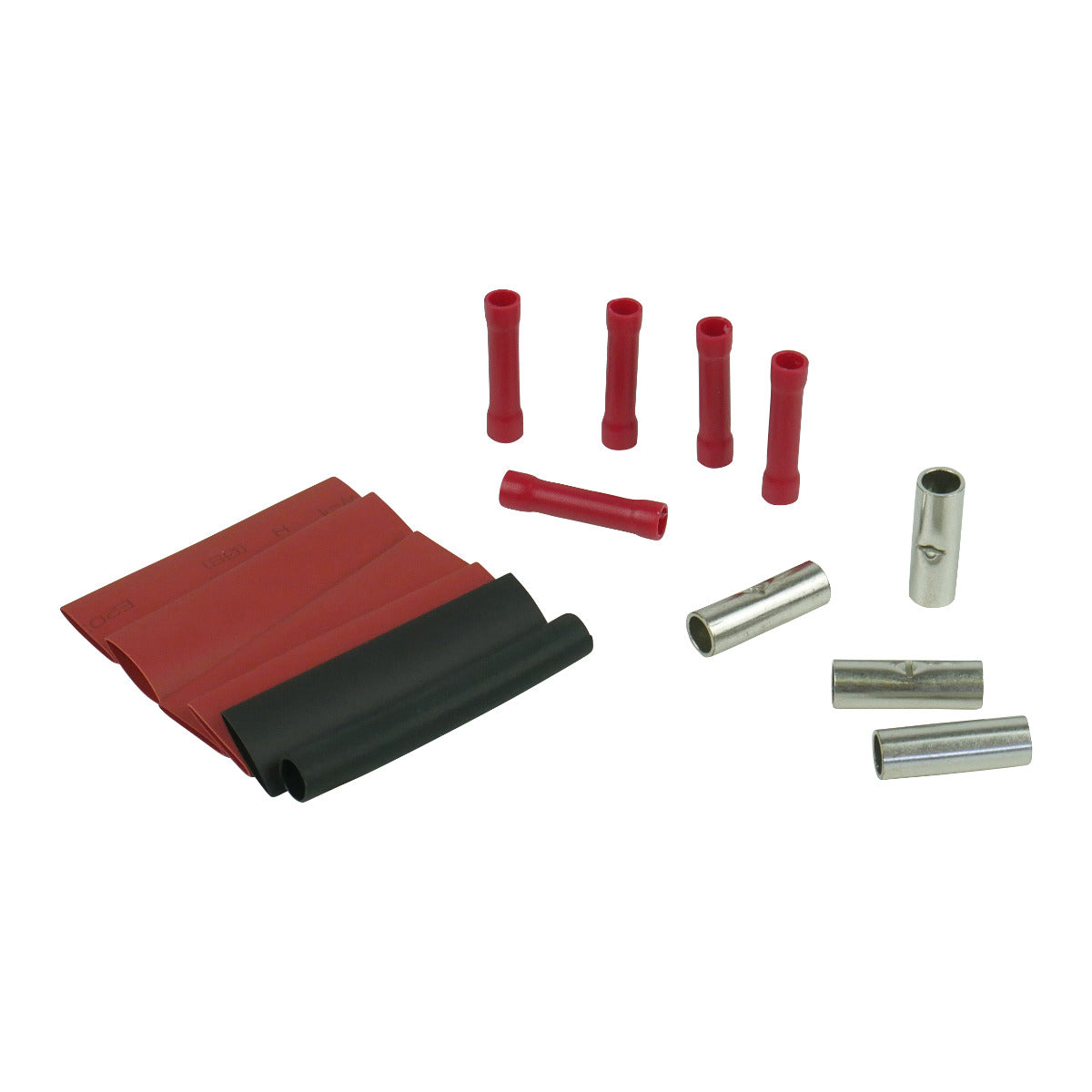

To make sound electrical connections, battery cables will need to be made to the correct length. Cable lugs should be crimped or soldered to the stripped battery cable and then protected with the supplied heat shrink. Butt splices should be used for cable extension.

Tools for the job:

We stock a range of 12V wiring tools for the job. We did not want to add these to our kits because we know many of you may already own them. However, we also recommend that you have the following tools for the job ahead.

Also below will be the part numbers if you wish to order any extra split sleeve tubing, lugs and wire.

*search the codes on our site to find*

Extra Parts

Narva Corrugated Split Sleeve Tubing 13mm x 10M: 56710

Narva Cable Lugs 8B&S x 6mm: AMS30398

8B&S Red Wire: AMS30473 (1M), AMS30104 (5M), AMS30105 (10M)

8B&S Black Wire: AMS30474 (1M), AMS30106 (5M), AMS30107 (10M)

Anderson Plug 50AMP: AMS30357

Other Tools

HD Ratchet Crimper Tool: AMS30388

Wire Stripper/Crimper: AMS30389

Soldering Iron 25W 240V: AMS40079
